Warranty - 24 MONTHS WARRANTY
Review this product

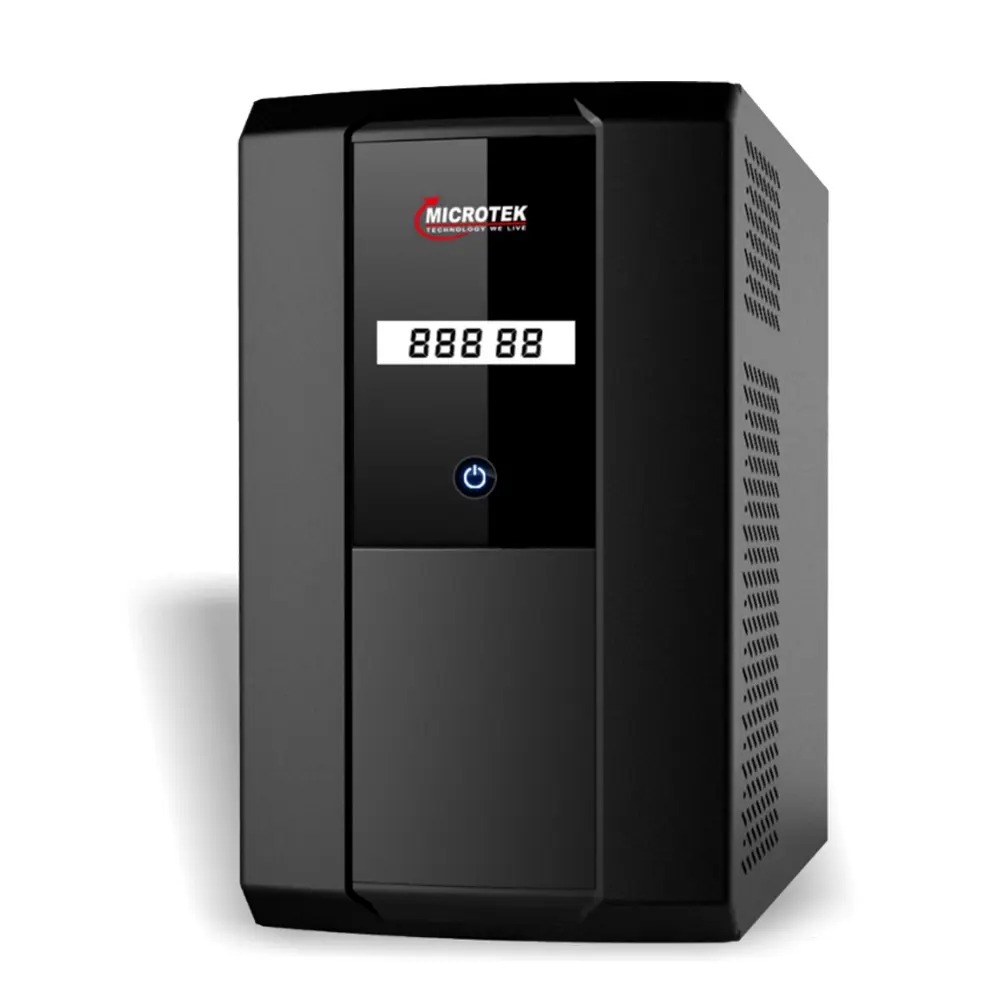

| MODEL UPS | JM SW 2500+/24V |
|---|---|
| Capacity / Rating | 2KVA / 1600W |
| Output Waveform /Power Factor | Pure Sinwave / 0.8 |
| Nominal Battery Voltage | 24V DC |
| Battery Charger | Boost Based PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging |
| Recommended Battery Type / Battery AH | Tall-Tubular, Flat-Plate Lead Acid Battery / (100AH-180AH)** |
| Output Frequency / Output Voltage (Battery Mode) | 50Hz+0.5Hz / 220+10% |
| Maximum Charging Current | 15A(+3A) |
| Standard Input Voltage Range (Inverter Mode) | 80V~295V |
| Narrow Input Voltage Range (UPS Mode) | 180V~265V |
| Transfer Time From Mains to Battery (UPS Mode) | <15ms |
| Input Brown Out Voltage | 80V+10V |
| Mains Bypass / Switch-Over | Rotary Bypass Switch / Automatic From Main>Backup & Backup>Mains |
| Seprated O/P With TDR | N/A |
| UPS Overload / Short Circuit Protection | >105% / >300% |
| Efficiency (Battery Mode) | >80% |
| Protection / Display | Low Battery Voltage, Battery Overcharge, Over Temp., Smart Overload Sense & Short Circuits / LCD Display |
| Environmental Parameters | Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dB Relative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
| Dimentions (LxWxH) mm | 445x320x460 mm |
| Gross Weight | 20 Kgs |
Microtek battery inverter Chennai.com is an authorized distributor in Chennai. Microtek battery inverter has been one of India's most reliable brands. Our entire range is appreciated by our clients due to optimum performance, silent operation, and prolonged service life. Our products and services supplied to meet a customer expectation and Satisfaction. We take Orders within Chennai Only.
