MODEL NAME & NUMBER

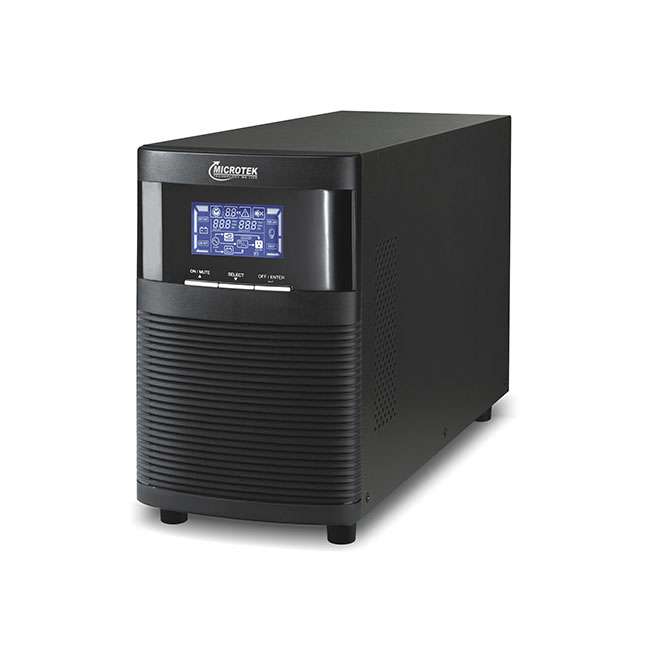

                                              ONLINE UPS E²-IB/ NM24EM1KK11-IB

CAPACITY

                                                               1KVA/800W

DC VOLTAGE SYSTEM

                                                                   24VDC

INPUT

Voltage Range

Voltage Range

                                                110VAC ± 5 % ~ 300 VAC ± 5 %

Frequency Range

40Hz ~ 70 Hz

Phase

Single phase with ground

Power Factor

? 0.99 @ full load

OUTPUT

Output voltage

                                    200/208/220/230/240VAC

AC Voltage Regulation

 ± 1% (Batt. Mode)

Frequency Range   (Batt. Mode)

                    50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz

Current Crest Ratio

3:1

Harmonic Distortion

          ?  2 % THD (Linear Load) ; 4 % THD (Non-linear Load)

Overload Capability

105% ~ 110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal.   110% ~ 130% : UPS shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal. >130%: UPS shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal.

Transfer Time

AC Mode to Batt. Mode

                 Zero

Inverter to Bypass

     < 4 ms (typical 2.5ms)

Waveform (Batt. Mode)

Pure Sinewave

EFFICIENCY

Efficiency(AC Mode/Batt.Mode)

88% / 83%

BATTERY

Battery

Type & Numbers

                          SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES)

Charge Current (Min.to Max. Range)

1A

PHYSICAL

Physical

Dimension        (LxWx H) in mm

282x145x220

Net Weight (Kgs.)

9.8 Kgs.

ENVIRONMENT

Operation Humidity

              20-95 % RH @ 0- 40°C (non-condensing)

Noise Level

           Less than 50dBA @ 1 Meter (With fan speed control)

LED/LCD Indication

                                 LCD Display Indications

MANAGEMENT

Smart RS-232 or USB

            Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC

Optional SNMP

            Power management from SNMP manager and web browser
