Capacity / Rating

 5.7KVA / 4560W

 Standard Input Voltage

 100V~280V

 Narrow Input Voltage

 180V~260V

 Output Voltage on Main Mode

 Same as Input

 Output Voltage on UPS mode

 220V+10%

 Output Frequency on UPS Mode

 50Hz+0.5Hz

 Switching form mains to UPS and UPS to mains

 Automatic

 Output wavefrom on mains mode

 Same as input

 Output wavefrom on backup mode

 Pure Sinewave

 Battery charging current

 Max Charge Current 20A+3A

 Battery Charger

 Boost Based PWM Control Multi-Stage IBM technology

 Efficinecy

 >80%

 Input Brown Out Voltage

 100V+10V

 UPS Overload

 108% of the Rated Capacity

 Technology

 DSP Based Smart Control Design

 Auto Reset Feature

 Yes

 Environmental Parameters

 Operating Temprature: 0~45*C  /  Acoustic Noise at 1 Mtr: <60dB
 Relative Humidity: MAX 95% Non Condensing  /  Thermal Management: Integrated cooling (Fan & Heat sink)

 Mains to Bypass

 Rotary/Rocker Bypass Switch

 Display

 LCD/LED Display Indicator

KEY FEATURE

• DSP/High-end micro controller based PWM technology using MOSFET: DSP/High-end micro controller used where the internal digital frequency control is at a speed of as high as 40 MIPS (millions instructions per Second).
• ACEC (Analog Compare Error Correction) technology based PWM for the generation of Pure Sine wave: Using ACEC technology the PWM is corrected.
• Boost Based PWM Controlled Intelligent Multistage Battery Management Charging Technology. The input power factor maintains 0.85 which reduce the electricity bills.
• Protections: Wiring Fault, Overload, Short Circuit, Battery low, Reverse Phase, Reverse Battery Protection.
• ASC (Assessing System Configuration) software technique is being incorporated. The software verifies all the critical system parameters before the system starts, & keep on assessing the system parameters while the system is running.
• Performance: Delivers unmatched noise free performance.
• UPS Mode: Very useful with computer type of application, Music studio or medical etc.
• Replicates Mains: Ensure same power quality as from mains with a crest factor of as high 3.7
• Display: LCD/LED Indication for status & Fault, Load & Battery Indication.
• PLPO: Peak load Peak Output ensures high load handling capacity.
• Generator Compatible.
•

• All new Advanced Core Technologies (Super Alloy and Binder Additives) Tubular Technology for Longer battery life.
• Extended Backup and Faster Recharge.
• Specialized super alloy spines and grids with low antimony content and grain refiner, ensuring ultra-low maintenance with minimal water loss.
• PAN India onsite hassle-free service.

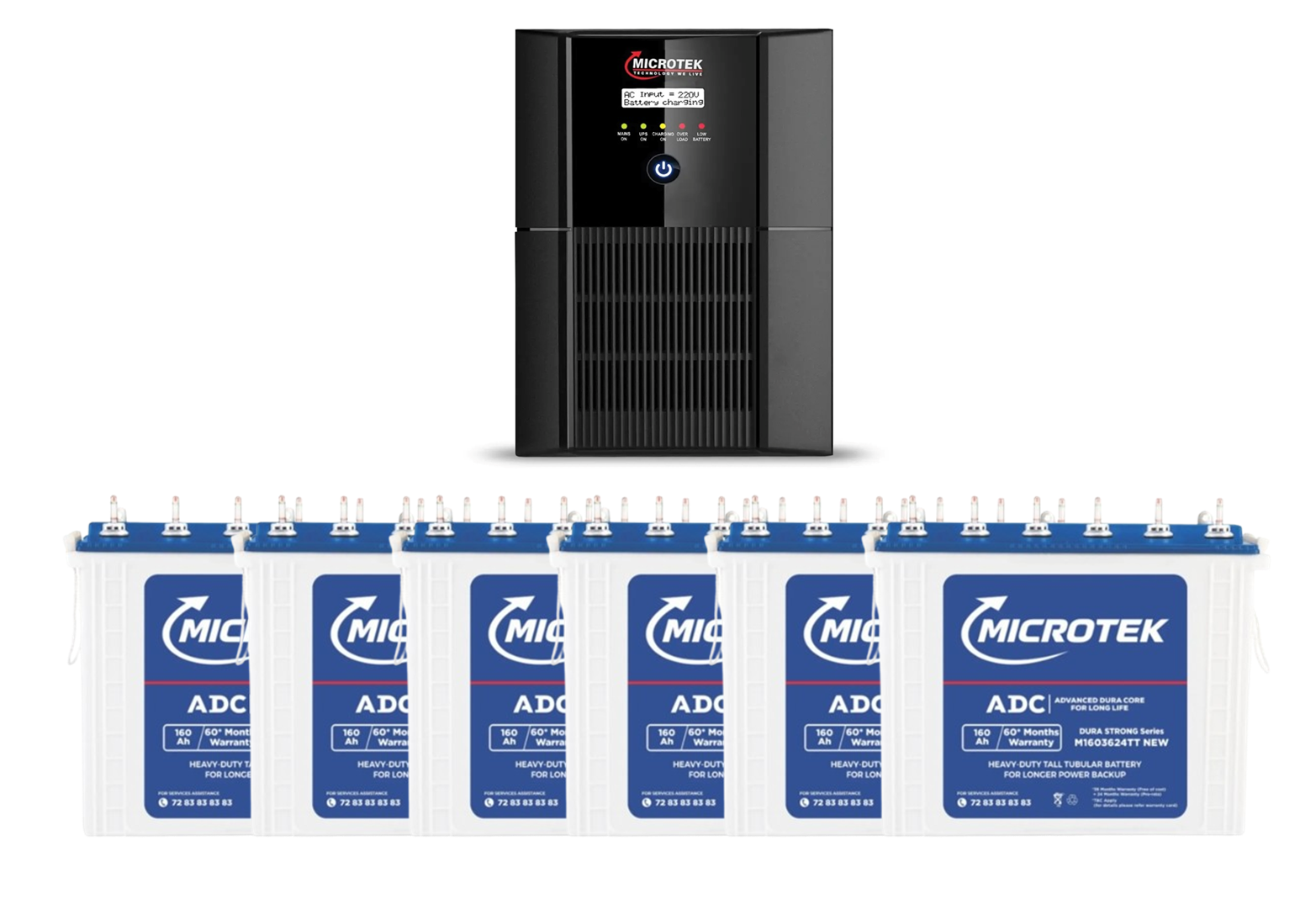

• Battery Details- Type: Jumbo tubular battery; Capacity: 160Ah/12V; Construction: rugged construction; water level indicators: 6
• Nominal Voltage: 12V; Rated Capacity: 160Ah.
• Warranty: 60 Months Total {36 months (flat) + 24 months (pro-rata)}.
• Dimensions: 52 x 27.9 x 28.3(cm) (±2 mm)
